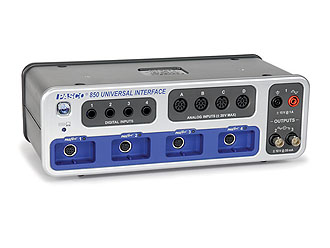

The 850 interface was designed for (and requires the use of) PASCO Capstone software. Together they form the most powerful data acquisition, display and analysis system available for science education.

Some of the features of PASCO Capstone are easily created and formatted workbook pages, the ability to undo or redo every action, simple to use tables, video capture and sync, a calibration wizard, the ability to open legacy DataStudio files and much more.

Features:

• Four Photogate Ports - directly connect photogates, Time-of-Flight and more.
• Four Analog Ports - For use with all analog ScienceWorkshop sensors such as Voltage, Force and Sound
• Four PASPORT Ports - compatible with the complete line of more than 70 PASPORT sensors
• 15 Watt Function Generator with Power Amplifier
• Dual Independent High Frequency Function Generators
• High Speed Sampling - up to 10 MHz on two channels or 1 MHz on four channels.
• USB 2.0 computer connection
• External Trigger Input/Output for synchronizing multiple 850s and more
• 44-Pin Expansion port for full expandability in the future
• Analog inputs protected up to ±300 volts. Outputs and power supplies are short circuit proof.
• And of course, the 850 is protected by PASCO's five year warranty.
